Horizontal Cartoning Machine

brand new compact horizontal cartoning machine for factories that require power, versatility, and reliability in a smaller space.

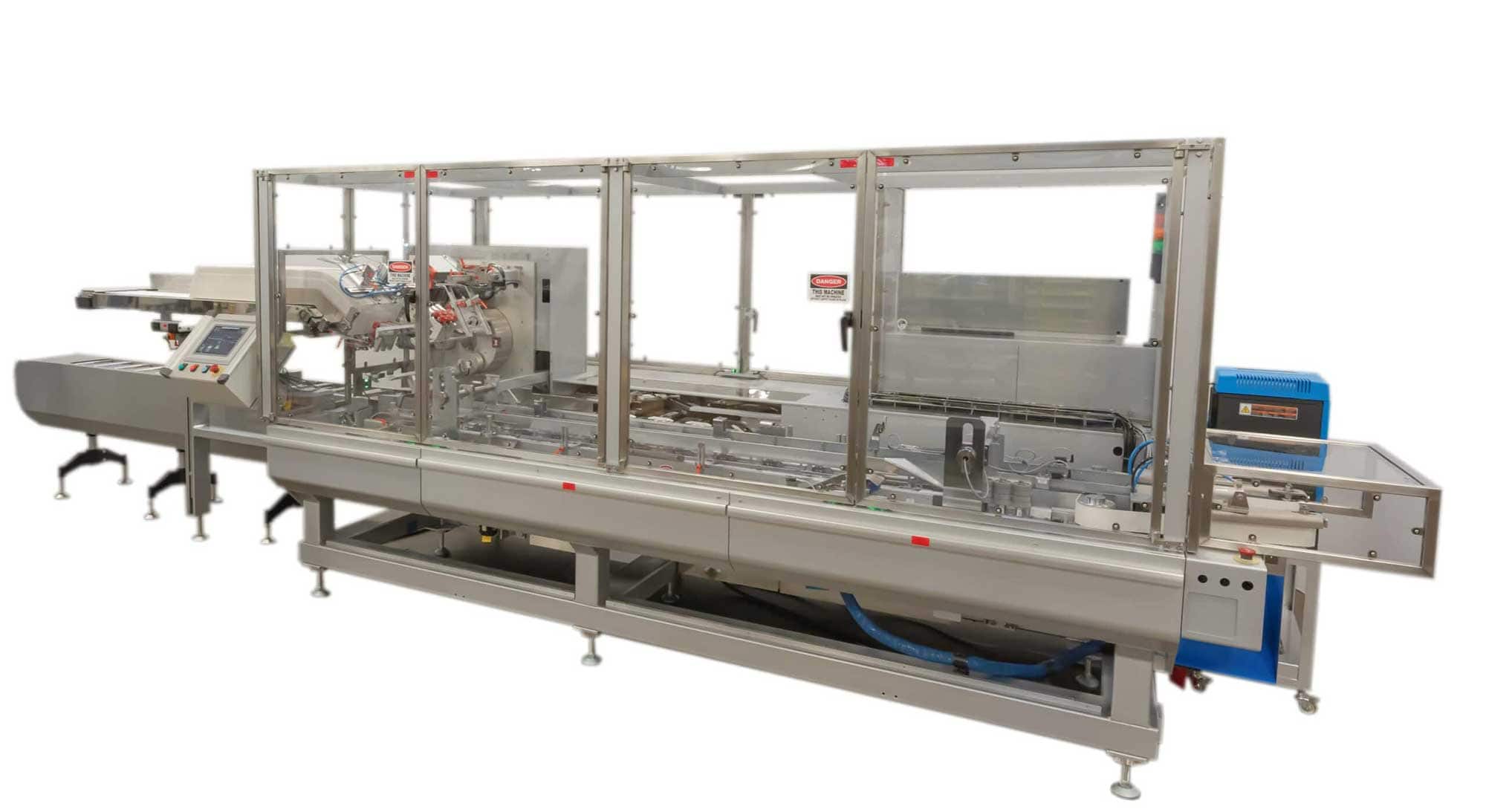

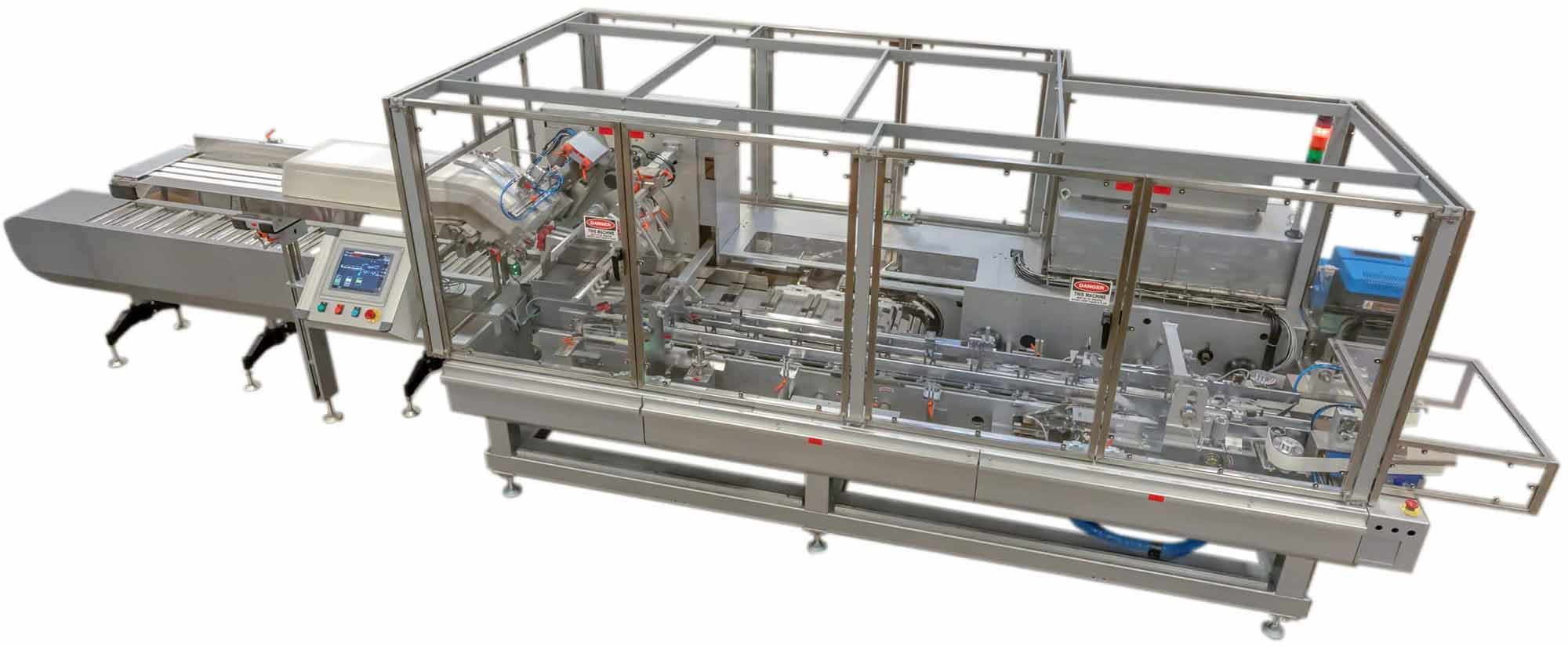

PMI KYOTO’s all-new KC-100F horizontal cartoner is the perfect carton packaging machine for those who require the speed, precision, and flexibility of a horizontal packaging machine but have limited space in their factory. Despite its size (5.25 feet tall and 20.5 ft long), it has many of our existing cartoner’s benefits: quick and easy change-over, capability for handloaded or automatic infeed, a maximum speed of 240 cartons / minute, and high-speed and servo-driven components. This machine is the ideal solution for small factories and contract packaging.

Benefits:

  • Heavy-duty, fully-welded tubular frame
  • Ethernet Connectivity module
  • Stainless steel drive shafts and protect guides
  • Full-height Lexan guard doors with interlocked painted steel frame
  • Category-3 Safety (lockable guard doors available)
  • Servo-driven rotary carton feeder with pre-break
  • Extended carton magazine, powered with low-level indicator
  • No-carton, no-fill and no-product, no carton control
  • Filling pushers do not require tools for changeover, since the top guide is identical for all sizes.
  • Open flap detection and rejection
  • Cycle stop mode – flaps in the process of being glued finish prior to the machine stopping
  • Nordson hot melt glue system
  • Compliant with OSHA, ANSI, NFPA, and UL

Specs:

Speed Range:: 240 cartons / minute
Power: 480V/60A/3PH (unless shipping internationally)
Air: 60 PSI @ 5 CFM
Carton Dimension Minimum: 2'' x 0.5'' x 4'' (L/W/H)
Carton Dimension Maximum: 6'' x 2.5'' x 10'' (L/W/H)

Packaging Types:

Candy and granola bars
Pouches and sachets
Stick packs (for drink mixes, etc.)

Markets/Applications:

  • Pouches
  • Snack Bars
  • Personal Care
  • Stick packs, such as drink mixes
